Illuminated green momentary push button switch rated at 5A for 12VDC applications. Designed for automotive controls, control panels, electronic projects, and signalling systems requiring reliable push-to-make operation with clear visual indication.
What it is

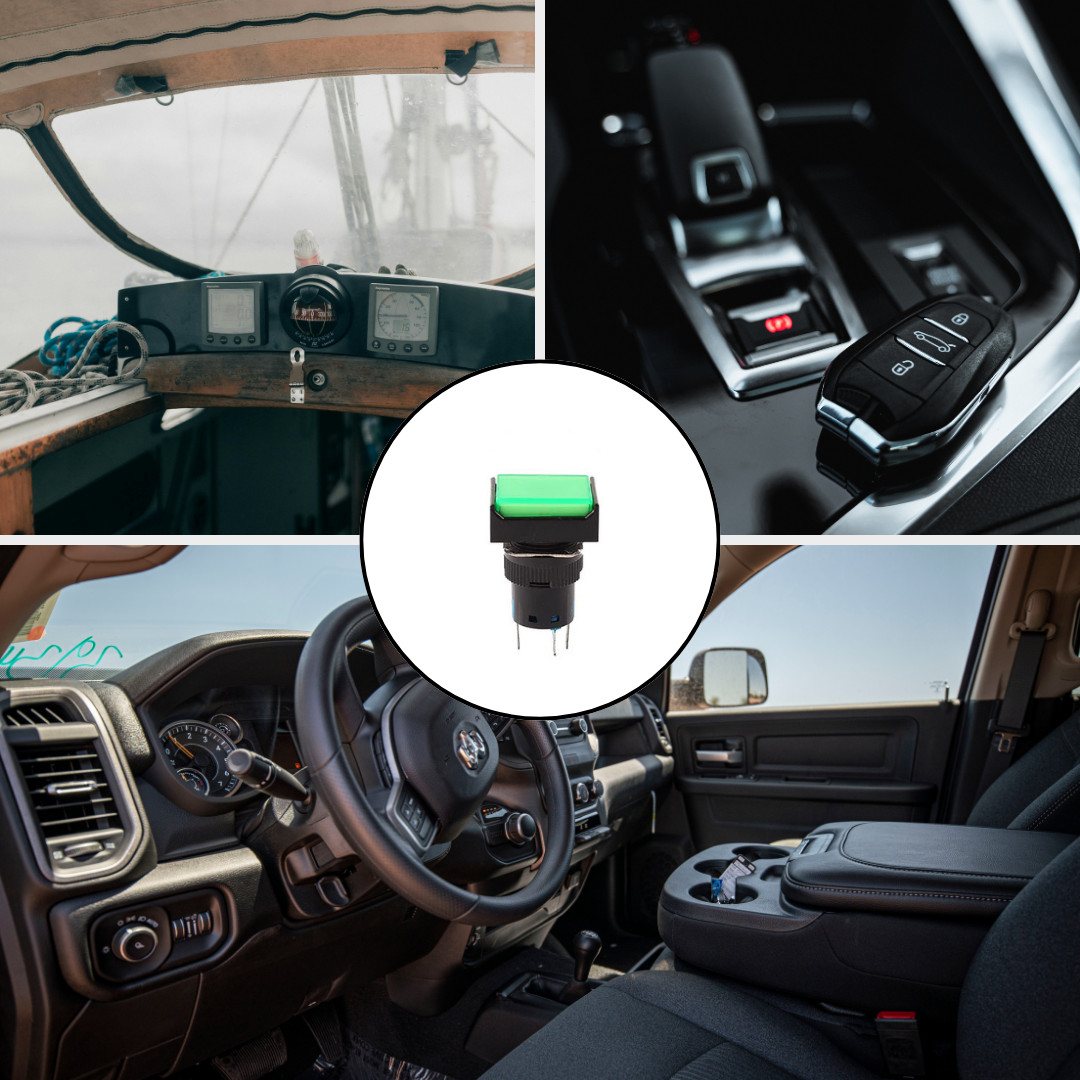

The E Auto Illuminated Green Square Push Button Switch is a momentary control switch designed for automotive, industrial, and electronic applications. Featuring SPST-NO (Single Pole Single Throw – Normally Open) operation and Push-To-Make / Return-To-Break (PTM/RTB) functionality, the switch activates the circuit only while pressed.
The integrated green illumination provides clear visual identification and status indication, making it ideal for dashboards, control panels, machinery controls, and custom installations where visibility and ease of operation are important.
Use Cases / Applications
Suitable for a variety of control and signalling applications, including:
- Automotive dashboard controls
- Auxiliary equipment activation
- Control panels and switchboards
- Industrial machinery controls
- Electronic projects and DIY applications
- Signal activation circuits
- Test and measurement equipment
- Marine control systems
- Appliance controls
- General-purpose momentary switching applications
Its illuminated design makes it particularly useful in low-light environments and control panels requiring quick identification.
Key Benefits
- Green illuminated actuator for improved visibility
- Momentary Push-To-Make / Return-To-Break operation
- Rated at 5A for 12VDC applications
- Compact square design for professional panel installations
- Reliable switching performance for control circuits
- Easy solder-lug wiring connections
- Suitable for automotive, industrial, and electronic applications
- Ideal for signalling, triggering, and temporary control functions
Illuminated momentary switches are commonly used in control systems because they provide both visual identification and precise circuit activation only while pressed.
Safety Compliance
- Rated 5A @ 12VDC
- Suitable for low-voltage automotive and control circuits
- Illuminated design for improved operational visibility
- Install according to electrical safety requirements and wiring standards
Always disconnect power before installation and ensure the connected load does not exceed the switch rating.
E Auto products are designed to provide dependable automotive and electrical switching solutions, offering reliable performance for replacement, maintenance, and custom installation projects.
Terminology:
Normally Open (NO):
A push button where the circuit is broken when the button is not pressed and closed (circuit connected) when pressed.
Normally Closed (NC):
A push button where the circuit is closed (circuit connected) when the button is not pressed and broken (circuit open) when pressed.
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw
DPST: Double Pole Single Throw
DPDT: Double Pole Double Throw
PTM/RTB: Push To Make/Release To Break
These terms refer to the number of poles and throws in the switch, describing the electrical circuitry.
Specification
- Function: Push Button Momentary
- Dimensions: 21x16mm
- Color: Green
- Illumination: Yes
- Load Capacity:Â 12VDC, 5A
- Material: Polycarbonate (PC)
- Mounting Type: Square Through Hole
- Amps:Â 5A
- Circuit: SPST-NO
- Pole/Contacts:Â 4
- Switch Positions: On/Off (PTM/RTB)
- Voltage: 12VDC
- Throw/Positions: 1
- Termination Style: Solder Lug
- Weatherproof: No
- Brand: E Auto
- Warranty: Yes
- Nationwide Shipping
