Heavy-duty weatherproof push button ignition switch rated at 60A (12VDC) or 30A (24VDC). Designed for demanding automotive, marine, agricultural, and industrial applications where reliable momentary switching and environmental protection are essential.
What it is

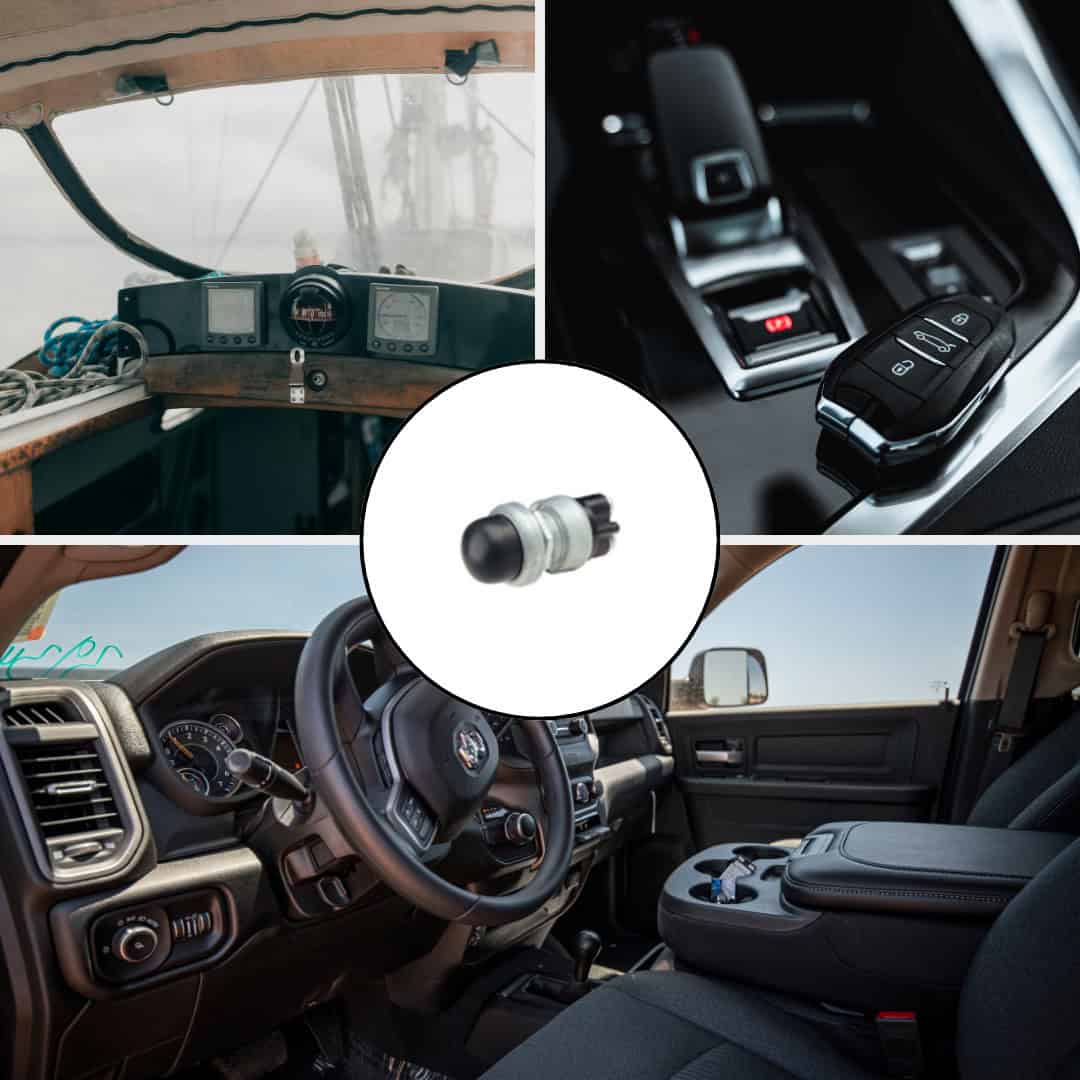

The E Auto Weatherproof Heavy Duty Push Button Ignition Switch is a high-current momentary switch engineered for reliable operation in harsh working environments. Featuring SPST-NO (Single Pole Single Throw – Normally Open) operation, the switch activates the circuit only while pressed, making it ideal for starter motor circuits and temporary control applications.
Built with a weatherproof design and heavy-duty construction, this switch is suitable for installations exposed to moisture, dust, and outdoor conditions. Its robust 60A rating at 12VDC and 30A rating at 24VDC make it an excellent choice for demanding vehicle and equipment applications.
Use Cases / Applications
Ideal for a wide range of heavy-duty switching applications, including:
- Starter motor activation
- Push button ignition systems
- Marine electrical systems
- Agricultural machinery
- Construction and earthmoving equipment
- Utility vehicles
- Trucks and commercial vehicles
- Off-road vehicles
- Industrial machinery
- Outdoor control systems
Its weatherproof design makes it particularly suitable for installations exposed to rain, dust, vibration, and demanding operating conditions.
Key Benefits
- Heavy-duty 60A capacity at 12VDC
- Supports both 12VDC and 24VDC systems
- Weatherproof construction for outdoor and harsh environments
- SPST normally-open configuration for momentary activation
- Reliable Push-To-Make / Return-To-Break operation
- Secure screw terminal connections for dependable wiring
- Suitable for starter motor and high-current applications
- Durable design for commercial, industrial, and marine use
High-current weatherproof switches are commonly used in starter circuits because they provide reliable electrical control while protecting internal components from environmental exposure.
Safety Compliance
- Rated 60A @ 12VDC
- Rated 30A @ 24VDC
- Suitable for high-current automotive, marine, and industrial circuits
- Weatherproof design helps protect against moisture and environmental contamination
- Install according to equipment wiring requirements and electrical safety standards
Always disconnect power before installation and ensure appropriate cable sizing is used for the intended current load.
E Auto products are designed to provide dependable automotive and industrial electrical solutions, offering reliable performance for replacement, maintenance, and custom installations in demanding environments.
Terminology:
Normally Open (NO):
A push button where the circuit is broken when the button is not pressed and closed (circuit connected) when pressed.
Normally Closed (NC):
A push button where the circuit is closed (circuit connected) when the button is not pressed and broken (circuit open) when pressed.
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw
DPST: Double Pole Single Throw
DPDT: Double Pole Double Throw
PTM/RTB: Push To Make/Release To Break
These terms refer to the number of poles and throws in the switch, describing the electrical circuitry.
Specification
- Function: Push Button Momentary
- Dimensions: 63.5x25mm
- Color: Black | Silver
- Illumination: No
- Material: Polycarbonate (PC)
- Mounting Type: Round Through Hole
- Amps: 60A
- Circuit: SPST-NO
- Load Capacity: 12VDC,60A Or 24V,30A
- Pole/Contacts: 2
- Switch Positions: On/Off (PTM/RTB)
- Voltage: 12VDC | 24VDC
- Throw/Positions: 1
- Termination Style: Screw Connector
- Weatherproof: No
- Brand: E Auto
- Warranty: Yes
- Nationwide Shipping
