A rocker switch is an electrical switch, often used to turn devices on or off, that is operated by a rocking motion, similar to a seesaw. The switch consists of a rectangular or square-shaped body with a hinged actuator that pivots around a central axis. When one side of the actuator is pressed, it makes contact with one set of terminals, and when the other side is pressed, it makes contact with a different set of terminals. This rocking action allows the user to easily control the flow of electricity to a circuit or device.
The switch consists of a rectangular, round or square-shaped body with a hinged actuator that pivots around a central axis. When one side of the actuator is pressed, it makes contact with one set of terminals, and when the other side is pressed, it makes contact with a different set of terminals. This rocking action allows the user to easily control the flow of electricity to a circuit or device.
Key features of rocker switches:
Actuator: The “rocker” itself is a lever that pivots.
Switch Body: A rectangular or square-shaped housing that holds the rocker and electrical contacts.
Contacts: Metal contacts within the switch that make or break the electrical connection when the rocker is moved.
Mounting: Designed for various mounting methods, including panel mounting, PCB mounting, or direct soldering.
Wiring: Requires connecting the switch terminals to the appropriate wires in the circuit.
Function: Primarily used to switch electrical circuits on and off.
Terminology:
Normally Open (NO):
A push button where the circuit is broken when the button is not pressed and closed (circuit connected) when pressed.
Normally Closed (NC):
A push button where the circuit is closed (circuit connected) when the button is not pressed and broken (circuit open) when pressed.
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw
DPST: Double Pole Single Throw
DPDT: Double Pole Double Throw
PTM/RTB: Push To Make/Release To Break
These terms refer to the number of poles and throws in the switch, describing the electrical circuitry.
Uses
- Electronic Devices
- Industrial Settings
- Home Appliances
- Automotive Applications
Features

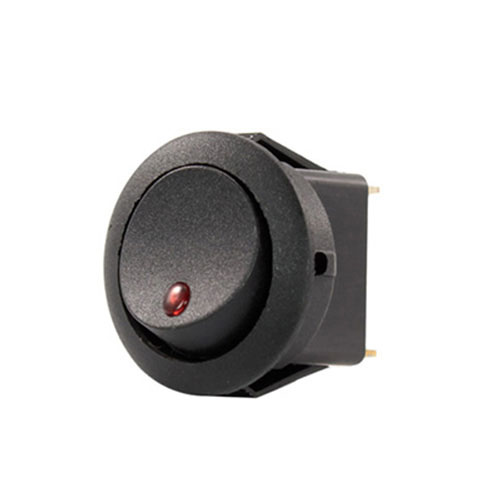

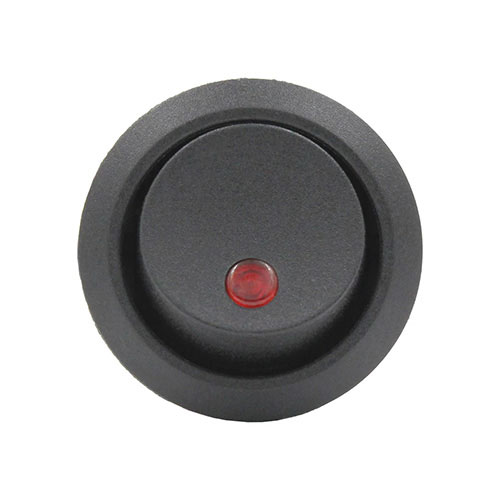

- Type: Rocker Switch

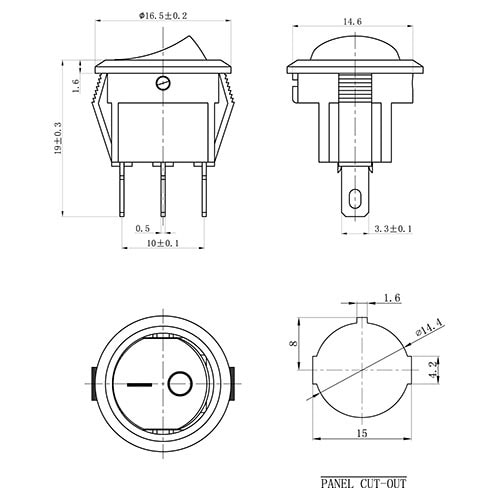

- Dimensions: 19x16mm
- Amps: 16A
- Circuit: DPST
- Color: Red
- Illumination: Yes
- Load Capacity: 12VDC,16A
- Mounting Type: Round Through Hole
- Mechanism Material: Plastic
- Pole/Contacts: 3
- Throw/Positions: 2
- Switch Function: On/Off
- Termination Style: Solder Lug
- Voltage: 12VDC
- Brand: E Auto
- Weatherproof: No
- Warranty: Yes
Or as low as
Auto Rocker Switches 12V, Auto Switches, Automotive
