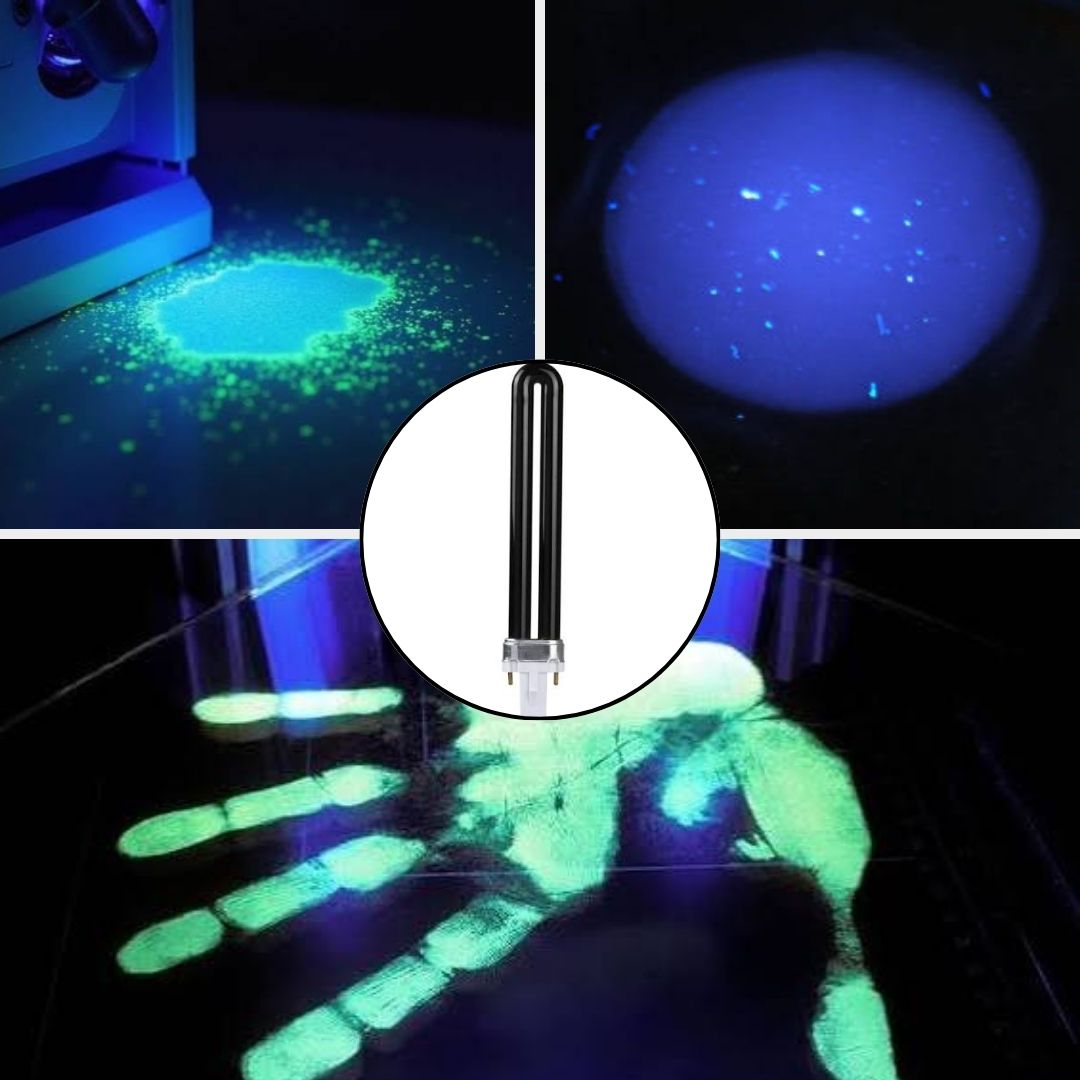

The 9W PL Blacklight Blue UV-A compact fluorescent lamp with a 2-pin G23 base, designed to produce long-wave ultraviolet radiation for blacklight effects, fluorescent displays, security marking detection, authentication and specialist UV inspection equipment. Requires compatible fluorescent control gear.
Â
What it is
The PL 9W 2-Pin G23 Blacklight Blue UV Lamp is a specialist compact fluorescent lamp designed to generate long-wave UV-A radiation rather than conventional white illumination.
Its Blacklight Blue (BLB) construction suppresses much of the visible light output while allowing UV-A radiation to excite compatible fluorescent pigments, dyes, security markings and other UV-reactive materials. These materials then produce the characteristic visible glow associated with blacklight applications.
The lamp uses a G23 2-pin base, a common configuration for 9W PL-S style compact fluorescent lamps. In this type of lamp, the starter is typically incorporated into the lamp base, while the fitting provides the compatible external ballast/control gear.
Unlike an E27 self-ballasted CFL, this lamp is not designed for direct connection to 220–240V mains. It must be operated in a compatible G23 fluorescent fitting with the appropriate control gear.
As this is a generic specialist lamp, the exact peak UV-A wavelength, dimensions, UV radiant output and rated life should not be assigned manufacturer-specific values unless confirmed from the physical lamp or packaging.
Â
Key Benefits
- Specialist Blacklight Blue UV-A technology
- Compact 9W PL format
- G23 2-pin base
- Produces fluorescence in compatible UV-reactive materials
- Useful for security marking detection
- Suitable for document and currency authentication
- Compact format for specialist UV equipment
- Suitable for compatible legacy PL fluorescent fittings
- Integrated starter typical of the 2-pin G23 configuration
- External fluorescent ballast/control gear required
Unlike an ordinary PL fluorescent lamp, lumens and colour temperature are not useful primary performance specifications for this product. Its defining characteristic is its UV-A spectral output and ability to excite fluorescent materials.
Â
Safety Compliance
- Emits UV-A ultraviolet radiation
- Avoid unnecessary prolonged direct UV exposure
- Avoid staring directly at an operating blacklight lamp
- Not designed for conventional room illumination
- Not a UV-C germicidal lamp
- Do not use or market for sterilisation or disinfection
- Not suitable for water purification
- Requires compatible fluorescent control gear
- Not designed for direct 220–240V mains connection
- Use only in a compatible G23 2-pin lamp holder
- Do not substitute incompatible 4-pin PL lamps
- Isolate electrical power before installation or replacement
- Handle the glass tubes carefully
- Compact fluorescent lamps contain mercury and should be appropriately recycled/disposed of
Use Cases / Applications
- Blacklight equipment
- UV inspection equipment
- Security marking detection
- Currency inspection
- Document authentication
- Fluorescence inspection
- UV-reactive displays
- Fluorescent artwork
- Stage and entertainment equipment
- Specialist inspection equipment
- Compatible 9W G23 UV fittings
Specification
- Type: Blacklight Blue UV-A Compact Fluorescent Lamp
- Material: Polycarbonate (PC) | Glass (G)
- Voltage: 220V
- Wattage:Â 9W
- Lamp Shape: PL Tube
- Lamp Base:Â G23 2 Pin
- Lamp Finish: Blue
- Spectrum: UV-A
- Dimmable: No
- Energy Saving: No
- Brand: Sparkie
- Warranty: 1 Year
- Nationwide Shipping
